Product Description

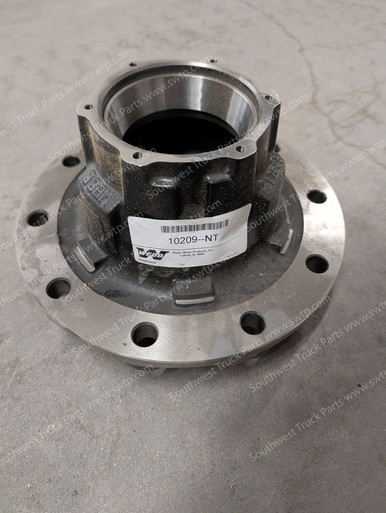

WEBB 10209NT / 10209--NT HEAVY-DUTY 1020 TRAILER WHEEL HUB
The Webb 10209NT is a heavy-duty 1020-series wheel hub assembly designed for commercial trailer axle applications. This hub is designed for stud-piloted (ball seat) wheel applications and includes the bearing cups and ABS tone ring.
This 10-hole hub features an 11.25" bolt circle and approximately 8.53" pilot diameter. The hub uses HM218210 inner and HM212011 outer bearing cups. Wheel studs are not included, allowing the appropriate studs to be installed for the required application.
Specifications:
- Manufacturer: Webb Wheel
- Part Number: 10209NT / 10209--NT
- Hub Number: 1020
- Application: Heavy-Duty Trailer Axle
- Wheel Mount: Stud Piloted / Ball Seat
- Drum Mounting: Outboard
- Bolt Holes: 10
- Bolt Circle: 11.25"
- Pilot Diameter: Approx. 8.53"
- Inner Bearing Cup: HM218210
- Outer Bearing Cup: HM212011
- ABS: Yes
- Wheel Studs: Not Included
- Approximate Hub Weight: 41 lbs.
Cross references may include 11-0605, 11-0605A, 1020, M-2544, 150.T1107, HT518K, 87336, 88332, E-5107, W481, 405, 5107P, and 5107PN. Always verify dimensions, bearing configuration, ABS requirements, and application before ordering.
