Product Description

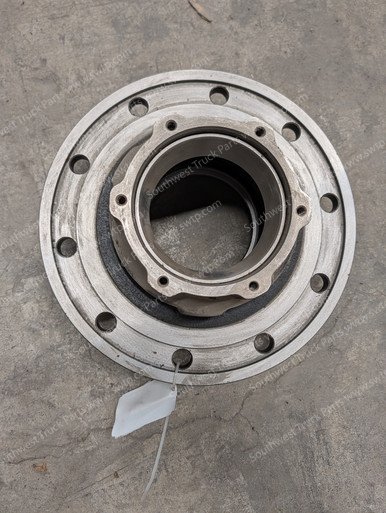

WEBB 12213N / 12213--N HEAVY-DUTY 1221 WHEEL HUB
The Webb 12213N is a heavy-duty 1221-series cast iron wheel hub designed for commercial truck and trailer wheel-end applications. This hub is supplied with bearing cups and without wheel studs, allowing the correct studs to be installed for the specific application.
The 12213N features stud-piloted (ball seat) wheel mounting, inboard brake drum mounting, a 10-hole bolt pattern, 11.25" bolt circle, and approximately 9-7/16" pilot diameter.
Specifications:
- Manufacturer: Webb Wheel
- Part Number: 12213N / 12213--N
- Hub Series: 1221
- Material: Cast Iron
- Wheel Mount: Stud Piloted / Ball Seat
- Brake Drum Mounting: Inboard
- Bolt Holes: 10
- Bolt Circle: 11.25"
- Pilot Diameter: Approx. 9-7/16"
- Inner Bearing Cup: 653
- Inner Bearing Cone: 663 / 665A
- Outer Bearing Cup: HM212011
- Outer Bearing Cone: HM212049
- ABS Sensor Ring: Not Included
- Wheel Studs: Not Included
Cross references may include 11-0600, 2359PN, E-2359, HT807K, W223, W482, M-2545, Dana 20101, and Budd 73278. Always verify dimensions, bearing configuration, wheel mounting style, and application before ordering.
