Product Description

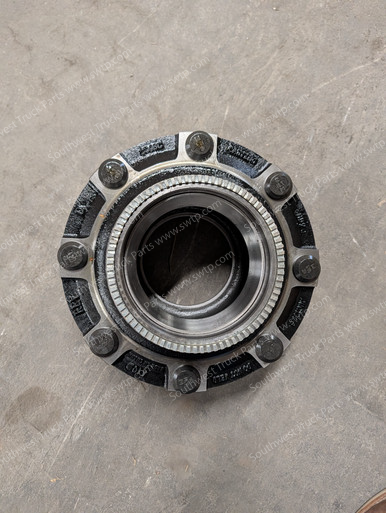

Webb 23471--3T80-71 2347 Heavy-Duty 8-Stud ABS Wheel Hub Assembly
The Webb 23471--3T80-71 is a heavy-duty 2347 cast-iron wheel hub assembly designed for commercial trucks. This hub features an 8-stud configuration, an 80-tooth ABS sensor ring, and an outboard brake drum mounting design.
The assembly uses M22 x 1.5 right-hand threaded wheel studs with a round-head serrated design. It features a 9.00-inch pilot diameter and an 8-hole, 275 mm (10.827-inch) bolt pattern. The ABS ring is included for use with the vehicle’s wheel-speed sensing system.
Built for strength, durability, and dependable wheel-end performance, the 23471--3T80-71 provides a more complete replacement assembly for trucks requiring the Webb 2347 ABS hub configuration.
Part Number: 23471--3T80-71
Hub Number: 2347
Product Type: Heavy-Duty ABS Wheel Hub Assembly
Brand: Webb
Hub Material: Cast Iron
Stud Configuration: 8-Stud
Stud Thread Size: M22 x 1.5
Stud Style: Round-Head Serrated
Stud Thread Direction: Right-Hand
Stud Length: 4.00 in.
Stud Standout: 3.21 in.
Bolt Pattern: 8 x 10.827 in. (275 mm)
Pilot Diameter: 9.00 in.
ABS Equipped: Yes
ABS Ring: 80-Tooth
Brake Drum Mounting: Outboard
Inner Bearing Cone: HM518445
Inner Bearing Cup: HM518410
Outer Bearing Cone: HM518445
Outer Bearing Cup: HM518410
Approximate Weight: 47.68 lb
Approximate Dimensions: 13.38 x 13.38 x 7.21 in.
Use: Heavy-Duty Commercial Trucks
Inventory Description: 2347 ASSY L/NUTS W/80T ABS W/O
Before ordering, confirm axle compatibility, stud configuration, bolt pattern, pilot diameter, bearing specifications, ABS requirements, brake drum mounting, and interchange numbers to ensure proper fit.
