Product Description

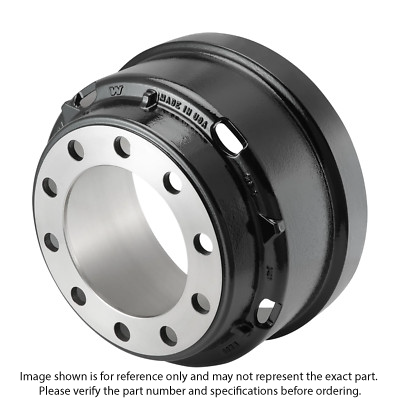

The Webb 61601F is a heavy-duty cast-iron brake drum designed for commercial truck and trailer wheel-end service. This standard-finished drum uses an inboard mounting configuration and has a 15-inch braking surface with a 6-inch brake size.
The 61601F features an 11.25-inch pilot diameter, 12.75-inch bolt circle, and 5/6-hole mounting configuration as specified in Webb's brake drum catalog. Its 7.38-inch overall depth and approximately 82-pound weight make it a substantial replacement drum for compatible heavy-duty wheel ends.
Because the 61601F is an older Webb part number, several interchange numbers may be useful when identifying existing inventory or researching a replacement. Always verify the Webb part number, dimensions, and interchange information before ordering.
Part Number: 61601F
Base Part Number: 61601
Brand: Webb
Product Type: Heavy-Duty Brake Drum
Brake Size: 15 x 6 in.
Brake Surface Diameter: 15.00 in.
Brake Surface Flat: 6.50 in.
Overall Depth: 7.38 in.
Mounting Type: Inboard
Drum Type: A
Material: Cast Iron
Finish: Standard Finished / Unbalanced
Pilot Diameter: 11.25 in.
Bolt Circle Diameter: 12.75 in.
Bolt Holes: 5/6 per Webb catalog
Bolt Hole Diameter: 0.66 in.
Backface Thickness: 0.50 in.
Approximate Weight: 82 lb
Cross References
Meritor / Dayton: 120069, 120116, 120197
Gunite: 2511A, 2516, 2589, 3291, 3291A
Motor Wheel: 86556, 86769
DuraBrake / DuraMetal: 1409, 14391
KIC / Reyco: 52522-30, 52662-01
International / Navistar: 284848C1, 459848C2, 925547R1
NWRA: X-60110, X-60161, X-60285
Additional Cross References: 11-KBP-0190, 11-LBT-0190, 393443, 393837, 513960, 683851
Additional secondary-source interchange numbers may include Motor Wheel 86558 and 94001. These numbers should be independently verified before being used to determine fitment.
Inventory Description: DRUM
Before ordering, confirm the Webb 61601F part number or a verified interchange and compare the 15 x 6 brake size, 11.25-inch pilot diameter, 12.75-inch bolt circle, mounting-hole configuration, 7.38-inch overall depth, and inboard mounting style with the drum being replaced. Cross-reference numbers are provided as an identification aid and should not be used as the sole basis for determining fit.
