Product Description

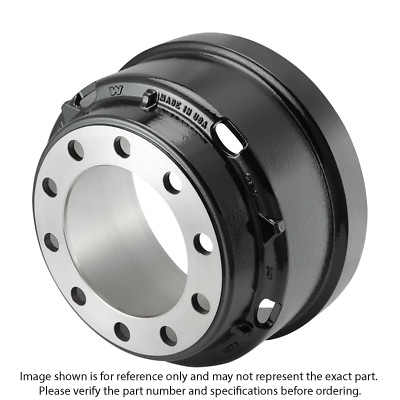

Webb 65157B 15 x 6 Balanced Heavy-Duty Outboard Brake Drum – Gunite 3438
The Webb 65157B is a 15 x 6-inch balanced cast-iron brake drum with an outboard mounting configuration. It uses a 9.00-inch pilot, 11.25-inch bolt circle, and 10 mounting holes measuring 1.31 inches in diameter.
Gunite 3438 is a recognized interchange for the 65157B. The drum also replaces the older Webb 65150B, which Webb lists as obsolete.
Part Number: 65157B
Base Part Number: 65157
Product Type: Heavy-Duty Brake Drum
Brand: Webb
Brake Size: 15 x 6 in.
Brake Surface Diameter: 15.00 in.
Brake Shoe Width: 6.00 in.
Brake Surface Flat: 6.50 in.
Overall Depth: 9.81 in.
Mounting Type: Outboard
Drum Type: H
Material: Cast Iron
Balance: Balanced
Pilot Diameter: 9.00 in.
Bolt Circle Diameter: 11.25 in.
Bolt Holes: 10
Bolt Hole Diameter: 1.31 in.
Back Plate Thickness: 0.62 in.
Maximum Wear Diameter: 15.25 in.
Approximate Weight: 111 lb
Gunite Cross References: 3438, 3512
Motor Wheel Cross Reference: 89855B
International / Navistar Cross Reference: 459855C1
Ford Cross Reference: E4HZ-1125-F
DuraBrake Cross References: 14156, 14682
Additional Cross References: 3239X, 821-9339, X-60807, X-60811, X-60816, X-60871
Supersedes: Webb 65150B
Inventory Description: DRUM 15X6 (GUNITE 3438)
Before ordering, confirm the 65157B number or a verified interchange, along with the 15 x 6 brake size, 9.00-inch pilot, 11.25-inch bolt circle, 10-hole pattern, 1.31-inch mounting holes, and outboard mounting configuration.
