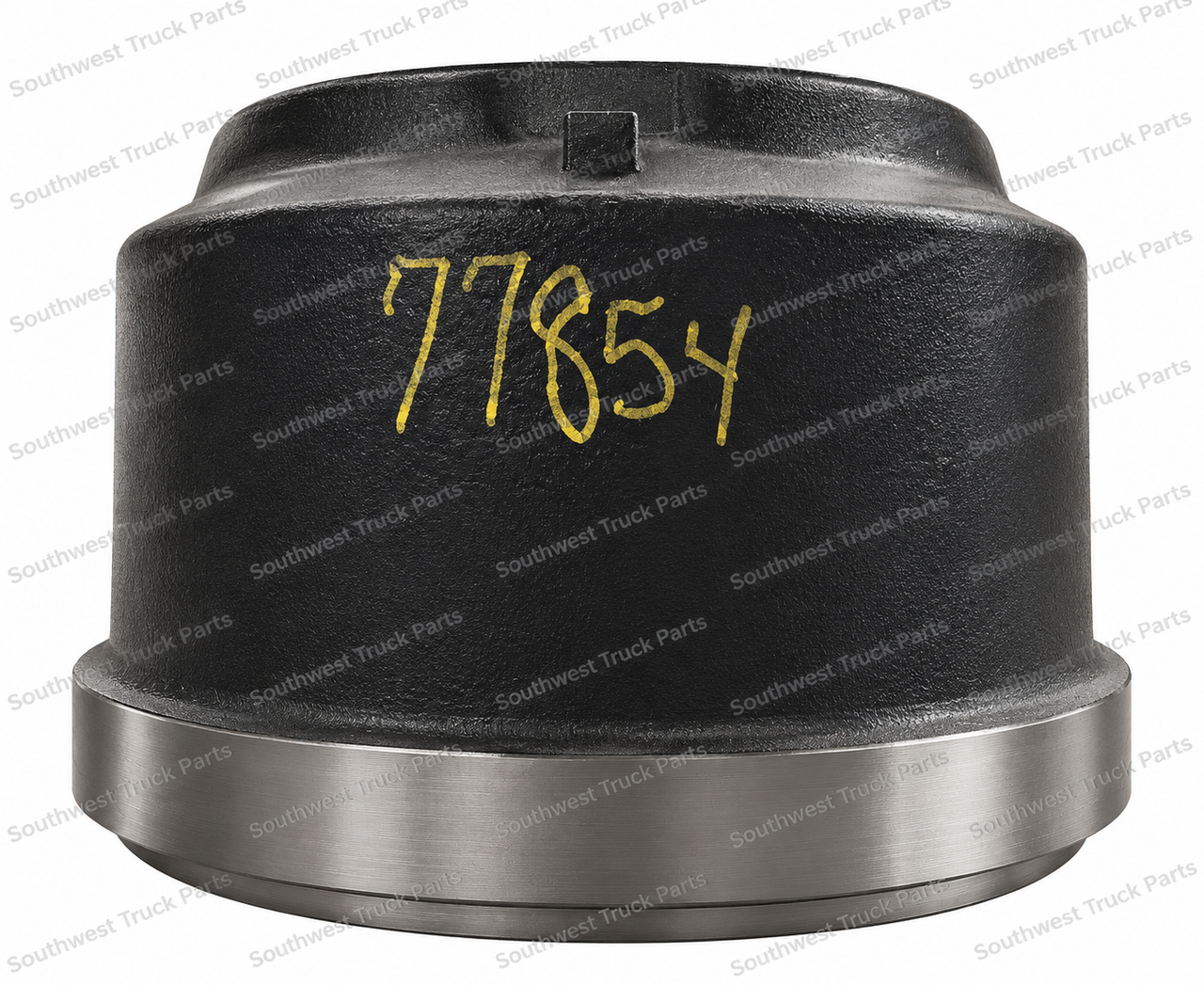

Webb 77854BW Vortex 16.5 x 8.62 Balanced Heavy-Duty Brake Drum
The Webb 77854BW is a 16.5 x 8.62-inch Vortex heavy-duty brake drum for drive and trailer axles. It features a balanced, outboard-mount design with Webb’s Vortex cooling-rib construction and a built-in wear indicator.
The Vortex design is the interesting part here. Webb developed the external cooling ribs to move heat away from the braking surface more efficiently. The 77854BW is the Vortex counterpart to the standard Webb 66854B, giving you the same general 16.5 x 8.62 brake configuration with the added Vortex features.
Part Number: 77854BW
Product Type: Heavy-Duty Vortex Brake Drum
Brand: Webb
Series: Vortex
Brake Size: 16.5 x 8.62 in.
Brake Surface Diameter: 16.50 in.
Brake Surface Flat: 9.05 in.
Overall Depth: 11.46 in.
Mounting Type: Outboard
Drum Type: V
Pilot Diameter: 8.78 in.
Bolt Circle Diameter: 11.25 in.
Bolt Holes: 10
Bolt Hole Diameter: 1.00 in.
Back Plate Thickness: 0.56 in.
Configuration: Balanced
Wear Indicator: Yes
Cooling Ribs: Yes
Axle Position: Drive and Trailer
Approximate Weight: 119 lb
Standard Webb Counterpart: 66854B
Cross References: ConMet 107638, Gunite 3807X, Meritor 85-123570-002
Inventory Description: (66854) VORTEX 16.5 8.62 MTN DRUM
Before ordering, confirm the 77854BW part number, 16.5 x 8.62 brake size, 8.78-inch pilot, 11.25-inch bolt circle, outboard mounting configuration, and interchange number to ensure proper fit.
