Product Description
The ConMet 10036549 is a PreSet Plus spindle nut service kit designed for FF front steer axle wheel ends using a keyway-style spindle nut configuration. This version is commonly used on Dana steer axles and is intended for compatible ConMet PreSet Plus hub assemblies.
The 10036549 uses a 1-1/2"-18 UNEF spindle thread and a 2-inch six-point socket. ConMet specifies a 300 ft-lb installation torque for this FF keyway configuration.

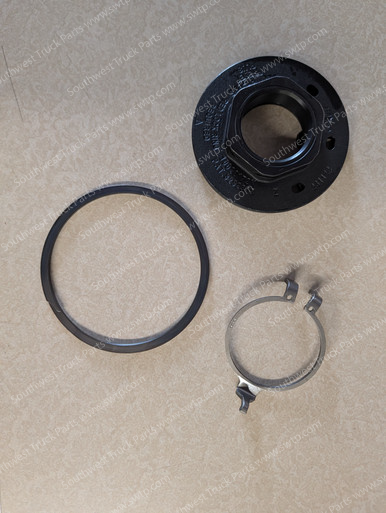

The kit includes the integrated spindle nut hardware needed to secure the hub properly at the wheel end. ConMet’s service information identifies the kit contents as the spindle nut, locking washer, red locking snap ring, and spiral retaining ring.
Product Details:
- Manufacturer: ConMet
- Part Number: 10036549
- Product Type: Spindle Nut Service Kit
- Hub System: PreSet Plus
- Axle Position: Front / Steer
- Axle Type: FF
- Spindle Style: Keyway
- Common Axle Use: Dana
- Spindle Thread: 1-1/2"-18 UNEF
- Socket Size: 2 in.
- Socket Style: Six-Point
- Installation Torque: 300 ft-lb
- Kit Includes:
- Spindle Nut
- Locking Washer
- Locking Snap Ring
- Spiral Retaining Ring
- Compatible with ConMet FF Keyway PreSet Plus wheel ends
Always verify the ConMet part number, spindle thread, FF axle configuration, keyway style, and existing wheel-end components before ordering.
