Product Description
The part contains a built-in core which may be returned to us for reimbursement.

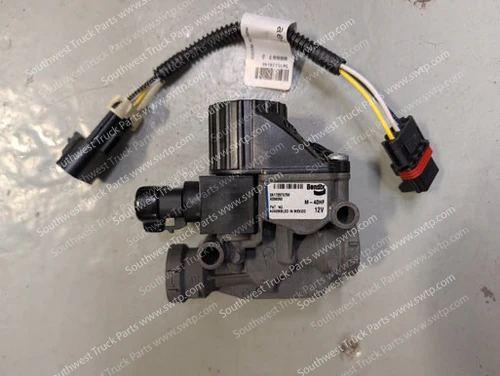

Bendix K079665 M-40HF ABS Modulator Valve 12V – High Flow
The Bendix K079665 M-40HF ABS Modulator Valve is a heavy-duty pneumatic braking component designed to regulate air pressure in commercial vehicle antilock braking systems (ABS). This high-flow valve helps provide precise brake pressure modulation, improving vehicle stability and control during demanding braking conditions.
The M-40HF modulator works with the vehicle's ABS electronic control unit to rapidly adjust air pressure delivered to the brake chambers. During an ABS event, the valve can hold, release or reapply brake pressure as directed by the control system, helping prevent wheel lockup and maintain traction on slippery or uneven road surfaces.
Designed for dependable performance in demanding commercial truck environments, the Bendix K079665 features a 12-volt electrical system, 150 PSI maximum operating pressure and a circular DIN three-way twist-lock electrical connector. Its high-flow design supports responsive air delivery and controlled braking performance.
The durable construction and compact design make this valve suitable for maintaining or repairing compatible heavy-duty truck ABS systems.
Product Features:
-
Genuine Bendix M-40HF ABS modulator valve
-
Manufacturer part number K079665
-
High-flow pneumatic modulator design
-
Supports antilock braking system operation
-
Electronically controlled brake pressure modulation
-
12-volt electrical operation
-

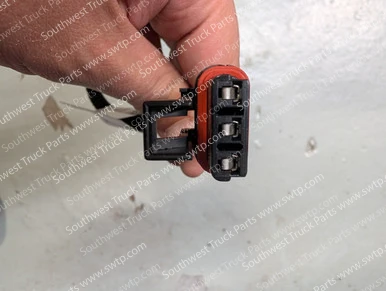

Circular DIN three-way twist-lock electrical connector
-
1/2-inch NPT supply and delivery ports
-
Maximum operating pressure of 150 PSI
-
Nominal current rating of 4.6 amps
-
Helps prevent wheel lockup during ABS activation
-
Supports vehicle stability and controlled braking
-
Durable construction for commercial truck service
-
Designed for compatible heavy-duty air brake systems
Technical Specifications:
-
Manufacturer: Bendix
-
Part Number: K079665
-
Model: M-40HF
-
Product Type: ABS Modulator Valve
-
Modulator Configuration: High Flow (HF)
-
Nominal Voltage: 12V DC
-
Nominal Current: 4.6 Amps
-
Maximum Operating Pressure: 150 PSI
-
Supply Port: 1/2"-14 NPT
-
Delivery Port: 1/2"-14 NPT
-
Exhaust Port: Dust Shield
-
Electrical Connector: Circular DIN Three-Way Twist-Lock (ISO 15170-1)
-
Mounting: Two 0.335-inch mounting holes
-
Duty Cycle: 15 Seconds / 5 Minutes
-
Maximum Solenoid On Time: 150 Seconds
-
Minimum Operating Temperature: -40°F
-
Maximum Operating Temperature: 185°F
-
VMRS Code: 013-011-071
-
Country of Origin: Mexico
These specifications are supported by the Bendix quick-reference guide and product listings for K079665.
Installation Note: Verify the original modulator part number, supply and delivery port sizes, connector configuration and vehicle ABS requirements before installation. K079665 uses a three-way twist-lock connector and should not be substituted for a Packard-style connector configuration without confirming compatibility.
