Product Description

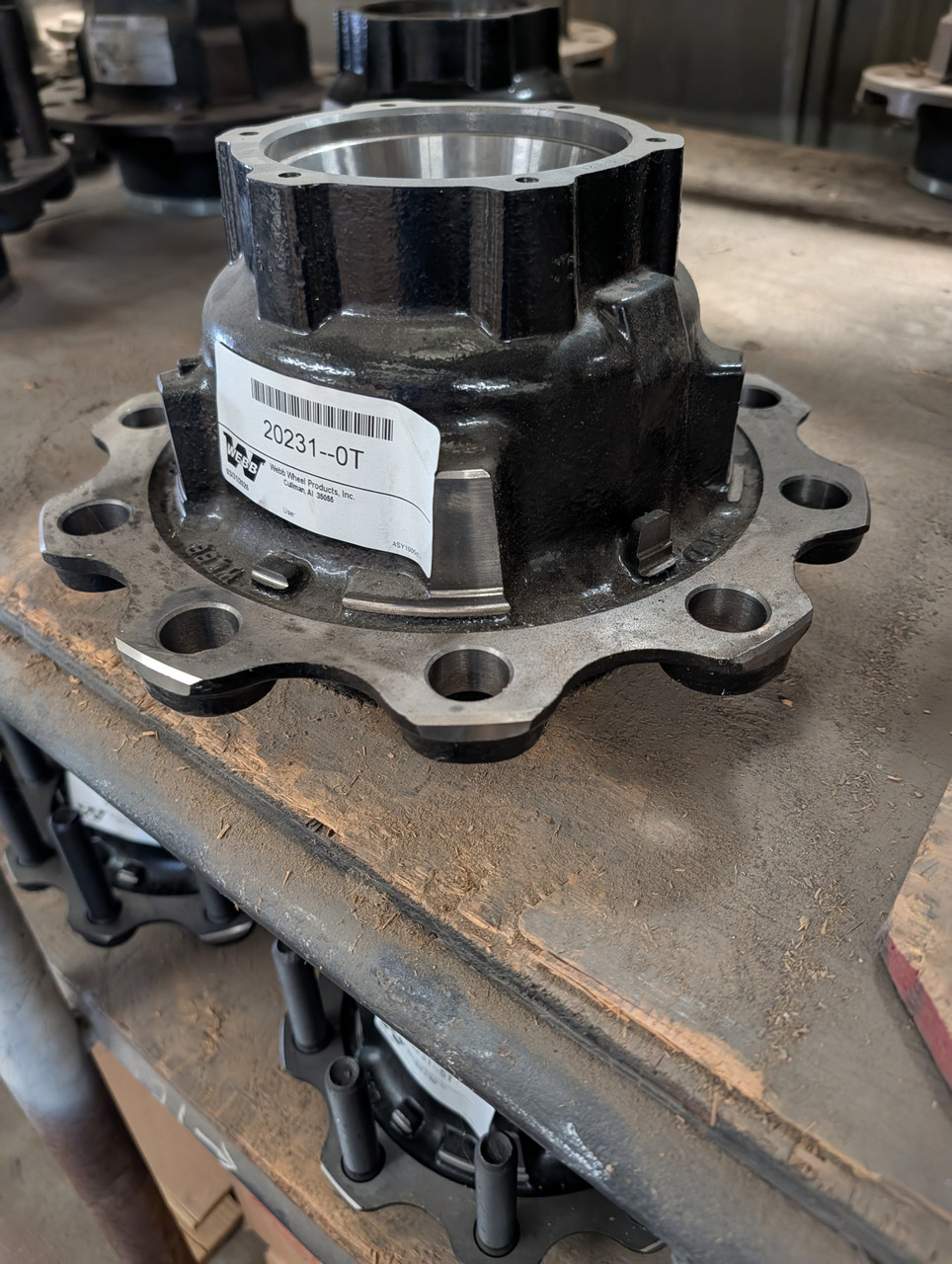

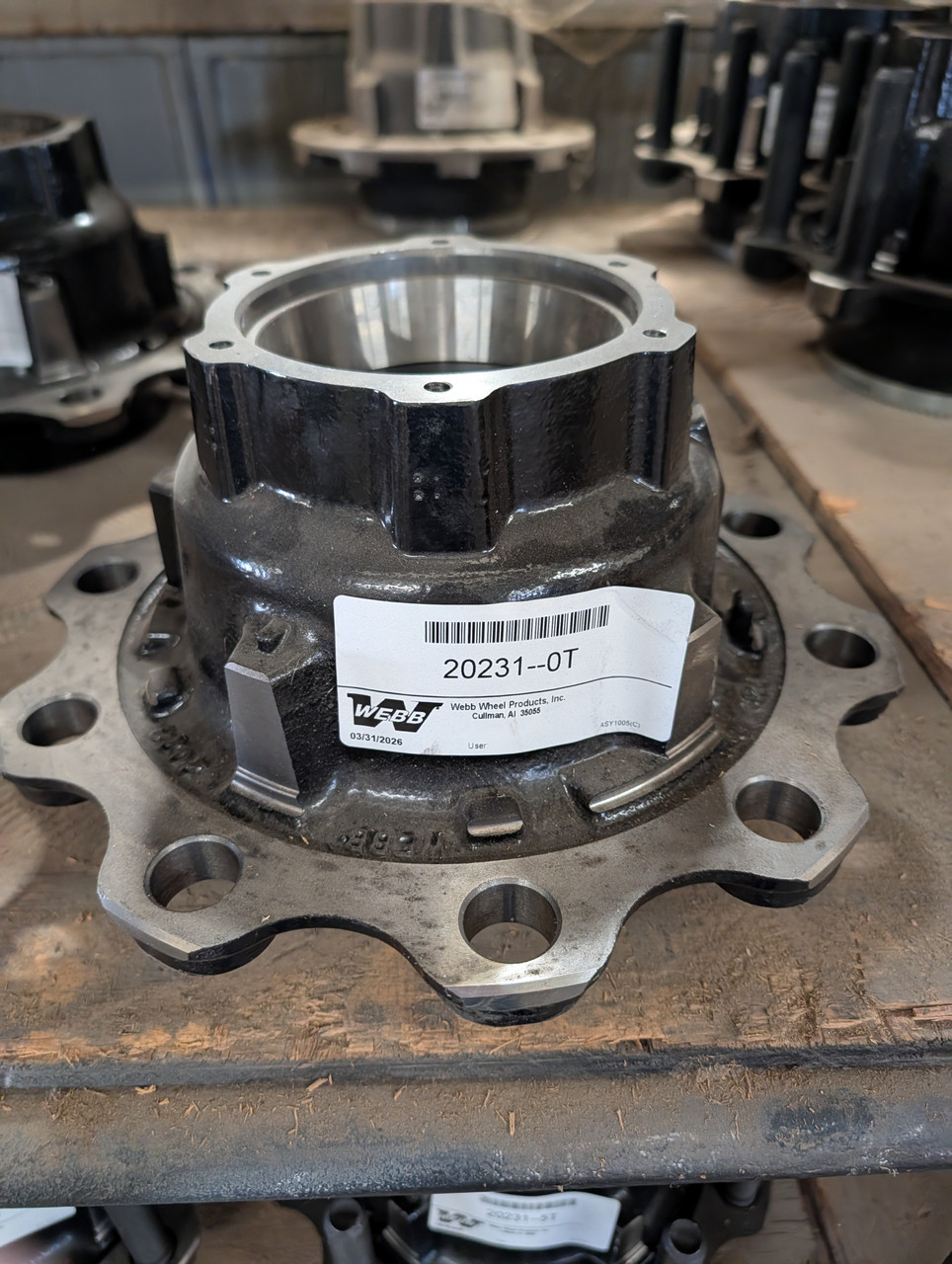

Webb 20231--0T 2023-Series 10-Stud ABS Wheel Hub with Bearing Cups – No Studs
The Webb 20231--0T is a heavy-duty cast-iron ABS wheel hub from Webb’s 2023 hub family. This configuration is supplied without wheel studs and includes the inner and outer bearing cups and ABS provisions.
The 2023 hub uses a 10-stud, 11.25-inch bolt-circle design with outboard brake drum mounting. Because the --0T version does not include wheel studs, the appropriate stud configuration can be selected for the required wheel mounting setup.
Part Number: 20231--0T
Base Hub Number: 2023
Product Type: Heavy-Duty ABS Wheel Hub Assembly
Brand: Webb
Hub Series: 2023
Hub Material: Cast Iron
Stud Capacity: 10 Stud
Wheel Bolt Circle: 11.25 in. / 285.75 mm
Wheel Studs Included: No
Bearing Cups Included: Yes
Inner Bearing Cup: HM218210
Outer Bearing Cup: HM212011
Inner Bearing Cone: HM218248
Outer Bearing Cone: HM212049
Bearing Cones Included: No
ABS Equipped: Yes
ABS Configuration: Direct-Machined ABS or ABS ring configuration depending on production version
ABS Ring Reference: Webb 51554
Brake Drum Mounting: Outboard
Compatible Webb Brake Drums: 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B
Related Webb Configuration – Dual Steel Wheels: 20231--3T
Related Webb Configuration – Dual Aluminum Wheels: 20231--5T
Gunite Cross Reference: HT794J
Legacy / Inventory Reference: 11-0657
Inventory Description: 11-0657 HUB W/ OUT STUDS
Identification Note: The --0T configuration is supplied without wheel studs. Do not assume wheel studs, bearing cones, wheel nuts, seals, hubcap, or brake drum are included.
ABS Note: Webb has offered this hub with either direct-machined ABS teeth or machining for an ABS ring. A hub with direct-machined ABS teeth will not accept a separate replacement ABS ring, so verify the existing hub before ordering ABS components.
Configuration Note: Webb 20231--3T is configured for pilot-mounted dual steel wheels with 101162 studs, while Webb 20231--5T uses longer 101160 studs for pilot-mounted dual aluminum wheels.
Before ordering, confirm Webb 20231--0T, the 10-stud 11.25-inch bolt-circle configuration, HM218210/HM212011 bearing cups, ABS configuration, required wheel studs, outboard brake drum mounting, and interchange number to ensure proper fit.
