Product Description

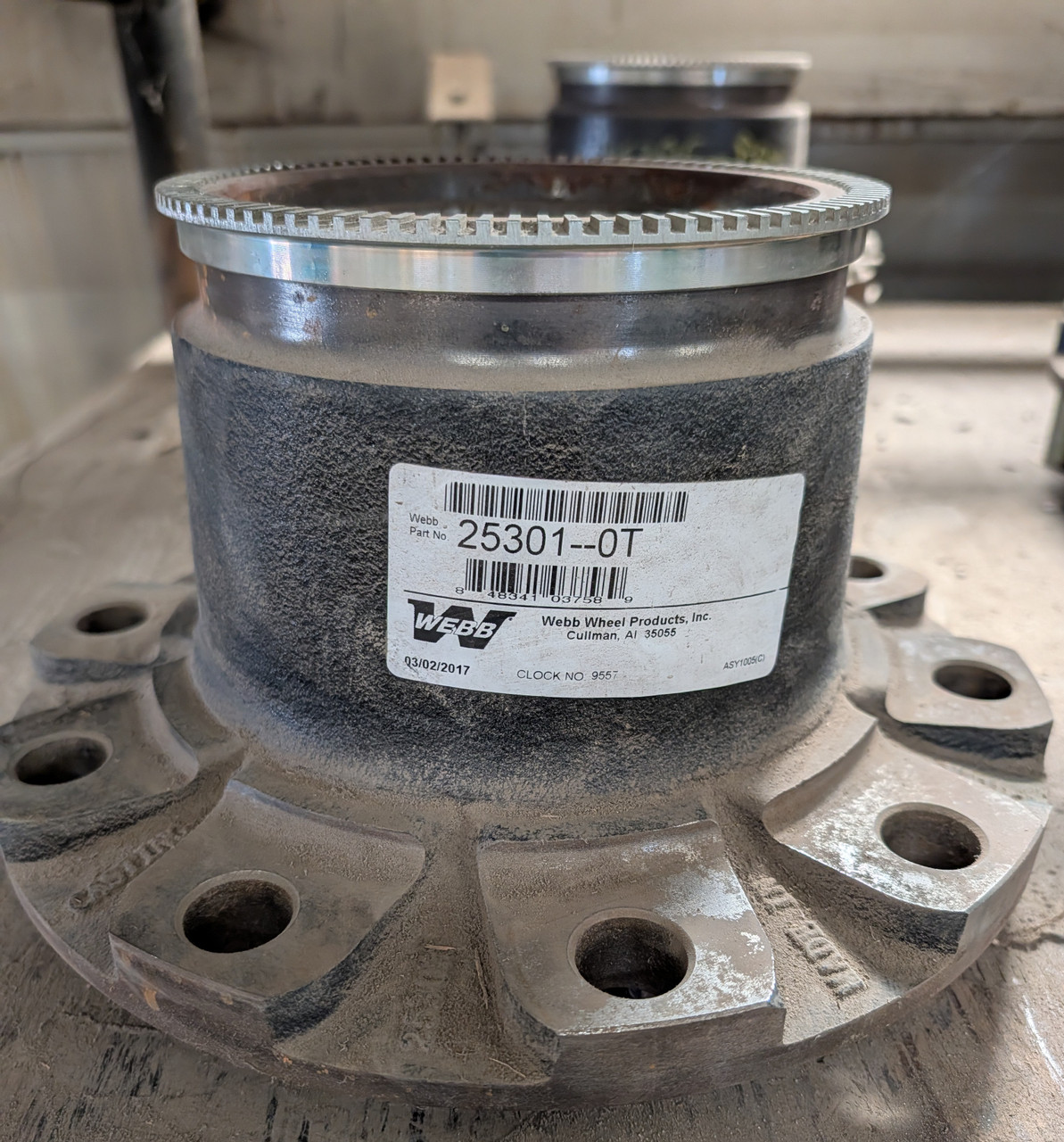

Webb 25301--0T 2530 10-Stud Heavy-Duty Wheel Hub
The Webb 25301--0T is a heavy-duty 10-stud wheel hub designed for commercial truck steering axle service. Part of Webb’s 2530 hub series, it is built for demanding wheel-end use and is designed for an outboard-mounted brake drum.
The 2530 hub features an 11.25-inch (285.75 mm) bolt circle and an 8.78-inch drum pilot. Webb lists the hub for both ball-seat nut and flange-nut wheel mounting configurations, depending on the vehicle setup.
This hub uses a 552A outer bearing cup with a 555S bearing cone and a 6420 inner bearing cup with a 6461A bearing cone. Webb rates the 2530 hub at an 11,000 lb dynamic hub capacity.
The 2530 series is also ABS-capable and is compatible with several Webb outboard brake drums, including 65545B, 65162B, 65170B, 66826B, and 66864B.
Product Details:
- Manufacturer: Webb Wheel
- Part Number: 25301--0T
- Hub Series: 2530
- Product: Heavy-Duty Wheel Hub
- Wheel Configuration: 10-Stud
- Bolt Circle: 11.25 in. / 285.75 mm
- Drum Pilot: 8.78 in.
- Brake Drum Mounting: Outboard
- Mounting Style: Ball-Seat Nut or Flange Nut
- Outer Bearing Cup: 552A
- Outer Bearing Cone: 555S
- Inner Bearing Cup: 6420
- Inner Bearing Cone: 6461A
- Dynamic Hub Capacity: 11,000 lb
- ABS-Capable
- Webb Axle Group: 12
- Inventory Description: 2530 10 STUD HUB
Always verify the part number, bearing configuration, bolt pattern, drum pilot, ABS setup, mounting style, and existing wheel-end components before ordering.
