Product Description

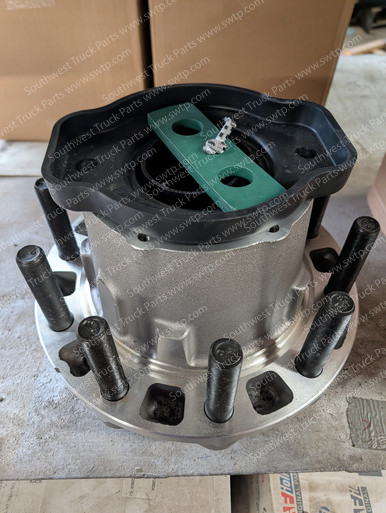

The ConMet 10082229 is a heavy-duty aluminum PreSet trailer hub assembly designed for TP trailer axle wheel ends using drum brakes. Its lightweight aluminum construction reduces wheel-end weight while providing the strength and durability required for commercial trailer service.
The 10082229 uses ConMet’s PreSet wheel-end technology, which incorporates precisely controlled bearing spacing to simplify installation and eliminate conventional manual bearing adjustment. ConMet explains that the precision-machined spacer maintains proper spacing between the bearings as part of the PreSet system.
This hub features a 10-stud hub-piloted wheel configuration with M22 x 1.5 mm wheel studs on an 11.25-inch bolt circle. The longer 3.81-inch stud standout is suited for aluminum wheel configurations. It carries a 12,500 lb individual hub rating for a 25,000 lb GAWR trailer axle configuration.
Product Details:
- Manufacturer: ConMet
- Part Number: 10082229
- Product Type: PreSet Trailer Hub Assembly
- Axle Position: Trailer
- Axle Type: TP
- Hub Material: Aluminum
- Brake Type: Drum Brake
- Wheel Configuration: 10-Stud Hub Piloted
- Hub Mounting System: HP10
- Wheel Stud Thread: M22 x 1.5 mm
- Wheel Stud Bolt Circle: 11.25 in.
- Wheel Stud Standout: 3.81 in.
- Flange Offset: 1.42 in.
- Inner Bearing Set: 432
- Outer Bearing Set: 432
- Hub Load Rating: 12,500 lb
- Gross Axle Rating: 25,000 lb GAWR
- Approximate Weight: 49.8 lb
- Country of Origin: USA
The 10082229 is an aftermarket replacement for ConMet assembly 10001201 and crosses to several other heavy-duty hub numbers, including Webb 230325T2200P.
Always verify the ConMet part number, TP axle configuration, wheel type, stud length, bearing configuration, brake setup, and existing wheel-end components before ordering.
