Product Description

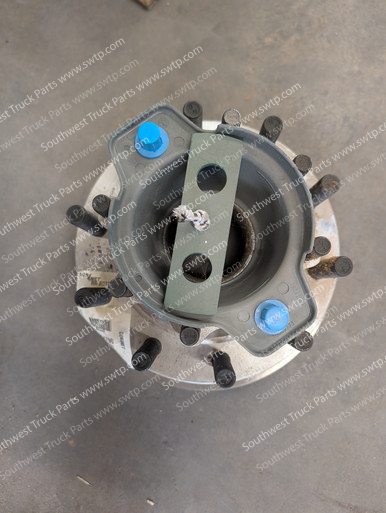

The ConMet 10084790 is a heavy-duty PreSet aluminum drive hub and flat brake rotor assembly designed for commercial truck air disc brake wheel ends. It combines a lightweight aluminum R-drive hub with a flat disc brake rotor in a complete wheel-end assembly.
This assembly uses ConMet’s PreSet wheel-end design and is configured for a 23,000 lb GAWR drive axle, with an individual hub load rating of 11,500 lb. ConMet identifies the 10084790 as an R-drive axle hub/rotor assembly used with select Freightliner, Western Star and other heavy-duty truck configurations featuring a flat rotor and snap-in ABS setup.
The aluminum hub is designed for hub-piloted wheels and features a 10-stud configuration with an 11.25-inch wheel-stud bolt circle. Wheel studs use M22 x 1.5 mm threads with approximately 3.58 inches of stud standout. The drive axle stud thread is 5/8"-18 UNC.
The assembly uses ConMet flat rotor 10083733. ConMet's aftermarket air-disc-brake guide lists 10083294 as the corresponding replacement rotor kit for this wheel-end configuration.
Product Details:
- Manufacturer: ConMet
- Part Number: 10084790
- Product Type: Drive Hub & Brake Rotor Assembly
- Hub Technology: PreSet
- Axle Position: Drive
- Hub Style: R-Drive
- Hub Material: Aluminum
- Brake Type: Air Disc Brake
- Rotor Style: Flat Rotor
- Rotor Reference: 10083733
- Replacement Rotor Kit: 10083294
- Hub Mounting System: HP10
- Wheel Configuration: 10-Stud Hub Piloted
- Wheel Stud Thread: M22 x 1.5 mm
- Wheel Stud Bolt Circle: 11.25 in.
- Wheel Stud Standout: 3.58 in.
- Drive/Axle Stud Thread: 5/8"-18 UNC
- Hub Flange Offset: 2.00 in.
- Hub Load Rating: 11,500 lb
- GAWR: 23,000 lb
- ABS Configuration: Snap-In ABS
- Designed for Aluminum Wheels
- Approximate Assembly Weight: 133.4 lb
Always verify the ConMet part number, axle configuration, brake system, wheel type, stud dimensions and existing wheel-end components before ordering.
