Product Description

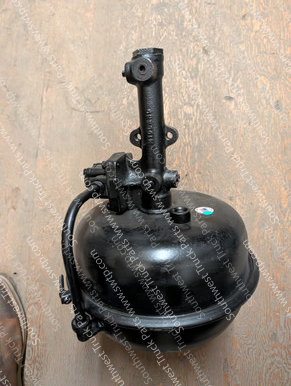

The Midland C464R is a single-diaphragm Hy-Power vacuum/hydraulic brake booster designed for medium- and heavy-duty hydraulic brake systems. The remanufactured Haldex equivalent is RV46401X, and the unit uses C3389 casting identification.
The C464R uses an 11.50-inch clamp-band diameter and measures approximately 16.12 inches overall. Hydraulic displacement is 2.48 cubic inches, with 1/8"-27 NPT inlet and outlet connections. Haldex rates maximum boost at approximately 1,150 PSI with 200 PSI hydraulic input at 20 in. Hg vacuum.
Part Number: C464R
Brand: Midland / Haldex
Product Type: Vacuum / Hydraulic Brake Booster
Style: Hy-Power, Single Diaphragm
Condition: Remanufactured
Haldex Reman Number: RV46401X
Casting Number: C3389
Clamp Diameter: 11.50 in.
Overall Length: 16.12 in.
Hydraulic Displacement: 2.48 cu. in.
Inlet: 1/8"-27 NPT
Outlet: 1/8"-27 NPT
Product Weight: 23 lb
Core Group: VAC1001
