Product Description

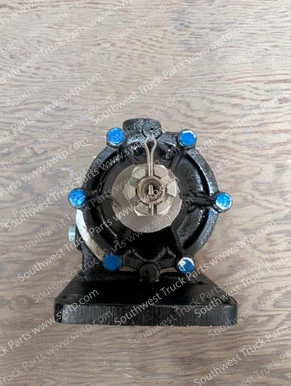

The Bendix 2513117 is a heavy-duty Convac vacuum pump designed to provide vacuum for vacuum-operated brake and vehicle systems. This engine-driven pump features clockwise rotation, a 2.24-inch shaft, and base-style engine lubrication.
The 2513117 uses a non-threaded vacuum/oil inlet and has a .375-inch plugged oil-air outlet located at the base. Bendix identifies this pump with code 3117 and lists 2501020 as the available service replacement.
Designed for older commercial trucks and heavy equipment equipped with Bendix Convac vacuum systems, the 2513117 is a durable replacement option when the original pump configuration matches.
Part Number: 2513117
Brand: Bendix
Product Type: Convac Vacuum Pump
Identification Code: 3117
Rotation: Clockwise
Shaft Length: 2.24 in.
Vacuum/Oil Inlet: Non-threaded
Oil-Air Outlet: .375 in., plugged
Outlet Location: Base
Lubrication: Base engine lubricated
Bendix Service Replacement: 2501020
VMRS: 13-008-032
Device Code: 6610
Product Weight: Approximately 15 lb.
Always verify the part number, rotation, shaft length, mounting configuration, ports, and existing pump configuration before ordering. Older Bendix Convac installations may require additional fittings or other modifications when using a current service replacement.
