• Bendix 281459N TR-3 Air Brake Inversion Valve – 25/40 PSI

    • Bendix 281459N TR-3 Air Brake Inversion Valve – 25/40 PSI

    Bendix

    $167.50
    SKU:
    281459N
    UPC:
    04068078431627
    Part Price:
    $142.50
    Core Price:
    $25.00
    Supplier:
    BX
    Adding to cart… category.add_cart_announcement

    Product Description

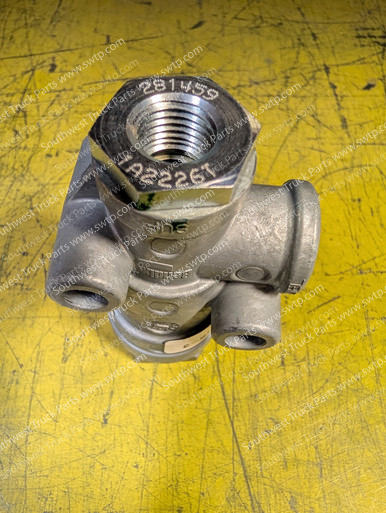

    Bendix 281459N TR-3 Air Brake Inversion Valve – 25/40 PSI

    The Bendix 281459N TR-3 Air Brake Inversion Valve is a heavy-duty pneumatic control component designed to regulate compressed air flow in commercial vehicle braking systems. Commonly used in emergency and parking brake circuits, this valve responds to changes in control pressure to provide dependable air system operation.

    The TR-3 inversion valve operates by reversing its pneumatic output in response to changes in control pressure. In systems using common supply and control pressure, the valve begins delivering air when pressure decreases to approximately 25 PSI and begins exhausting when pressure increases to approximately 40 PSI.

    Manufactured with a durable metal body, the Bendix 281459N is engineered for reliable operation in demanding commercial truck environments. Its compact design, threaded pneumatic connections and straightforward mounting configuration make it suitable for replacing compatible inversion valves in heavy-duty air brake systems.

    Product Features:

    • Genuine Bendix TR-3 air brake inversion valve

    • Manufacturer part number 281459N

    • New aftermarket service replacement

    • Designed for emergency and parking brake circuits

    • 25 PSI inlet opening pressure with descending control pressure

    • 40 PSI exhaust opening pressure with ascending control pressure

    • 1/4-inch NPT supply port

    • 1/4-inch NPT delivery port

    • 1/8-inch NPT control port

    • Two mounting holes

    • Durable metal valve body

    • Dust-shielded exhaust port

    • Compact construction for commercial vehicle installation

    • Operating temperature range of -40°F to 200°F

    Technical Specifications:

    • Manufacturer: Bendix

    • Part Number: 281459N

    • Model: TR-3

    • Product Type: Air Brake Inversion Valve

    • Condition: New

    • Valve Function: Pneumatic Pressure Inversion

    • Supply Port: 1/4"-18 NPT

    • Delivery Port: 1/4"-18 NPT

    • Control Port: 1/8"-27 NPT

    • Exhaust Port: Dust Shield

    • Inlet Opening Pressure (Descending): 25 PSI

    • Exhaust Opening Pressure (Ascending): 40 PSI

    • Inlet Opening Pressure (Constant Supply): 8 PSI

    • Mounting: Two 0.280-inch diameter holes

    • Minimum Operating Temperature: -40°F

    • Maximum Operating Temperature: 200°F

    • VMRS Code: 013-010-047

    • Remanufactured Reference: Bendix 281459RX

    Installation Note: Verify the original valve part number, pneumatic port configuration, mounting arrangement and required pressure settings before installation. Bendix manufactures multiple TR-3 inversion valves with different operating pressure thresholds. The 281459N configuration is rated for 25 PSI inlet opening and 40 PSI exhaust opening under common supply and control pressure conditions.
